Reading a SIM card (in Hackable magazine)

I just read an article in the French magazine Hackable number 61.

/images/2025/08/hackable-magazine-61.jpg

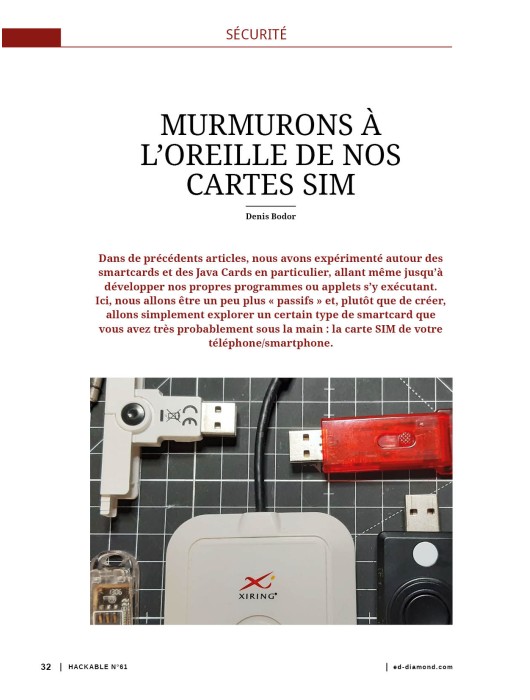

The article title is "Murmurons à l'oreille de nos cartes SIM" (Let's whisper in the ears of our SIM cards) written by Denis Bodor.

/images/2025/08/hackable-magazine-61-SIM.jpg

Abstract:

" Dans de précédents articles, nous avons expérimenté autour des smartcards et des Java Cards en particulier, allant même jusqu'à développer nos propres programmes ou applets s'y exécutant. Ici, nous allons être un peu plus « passifs » et, plutôt que de créer, allons simplement explorer un certain type de smartcard que vous avez très probablement sous la main : la carte SIM de votre téléphone/smartphone. "

Denis, the author, uses a tool he developed himself: pcscapdu "A simple tool to exchange APDUs with PC/SC smardcards". pscsapdu seems to be an interesting tool for using smart cards. You can send APDU and also write Lua scripts. I did not know this tool.

Lua sample script provided with pcscapdu:

-- Application Select for custom Javacard Applet
selapp = "00a4 0400 0a f276a288bcdeadbeef01"
getcount = { 0x80, 0x50, 0x00, 0x00, 0x01 }
get_hi = "8040 0000 0d"
getmeminfo = "8061 0000 04"


print("Select applet")
-- Send string APDU
response = sendstrapdu(selapp)
if (#response ~= 2) then
    print("Bad response size!")
    do return end
end
if (response[1] ~= 0x90 and response[2] ~= 0x00) then
    print("Bad response!")
    do return end
end
print("> OK")


print("Get counter value")
-- Send hex APDU
response2 = sendapdu(getcount)
-- get rid of status code
table.remove(response2, #response2)
table.remove(response2, #response2)
-- Display response
s = "> "
for key,value in ipairs(response2) do
    s = s .. string.format("%d", value)
end
print(s)


print("Get french 'Hello World'")
-- Send hex APDU
response3 = sendstrapdu(get_hi)
-- get rid of status code
text = { table.unpack(response3, 1, #response3 - 2) }
-- Display ASCII response
s = "> "
for key,value in ipairs(text) do
    s = s .. string.format("%c", value)
end
print(s)

print("Get flash/EEPROM size (for Javacard 2.2.2 max value is 32767 even if the card has more memory)")
-- Send hex APDU
response2 = sendstrapdu(getmeminfo)
-- get rid of status code
table.remove(response2, #response2)
table.remove(response2, #response2)
-- Display response
s = 0
for key,value in ipairs(response2) do
    s = s .. string.format("%02x", value)
end
print("> " .. tonumber(s,16) .. " bytes")

Conclusion

If you live in France or have access to French magazines I suggest you buy issue 61 of Hackable. It is the July-August 2025 edition.

You can also buy and read the online version at Murmurons à l'oreille de nos cartes SIM.
